Bag In / Bag Out System

ILC Dover

OVERVIEW :
  • The ILC Dover Bag In/Bag Out (BIBO) system is a family of contained transfer designs for multiple processes. The primary components for this validated operation consist of multiple groove canisters, docking interface hardware, and softgoods in either continuous liner form or discreet liner Read More ...
OVERVIEW :
  • The ILC Dover Bag In/Bag Out (BIBO) system is a family of contained transfer designs for multiple processes. The primary components for this validated operation consist of multiple groove canisters, docking interface hardware, and softgoods in either continuous liner form or discreet liners.
  • This system can be applied to both rigid and flexible isolators. The use of multiple size canisters allows a broad range of needs to be met, systems can be retrofit to existing assets, and the BIBO system requires a low capital outlay. OPERATION By utilizing the patented multi o-ring and flexible containment techniques developed by ILC Dover, this system complements other ILC Dover containment components.

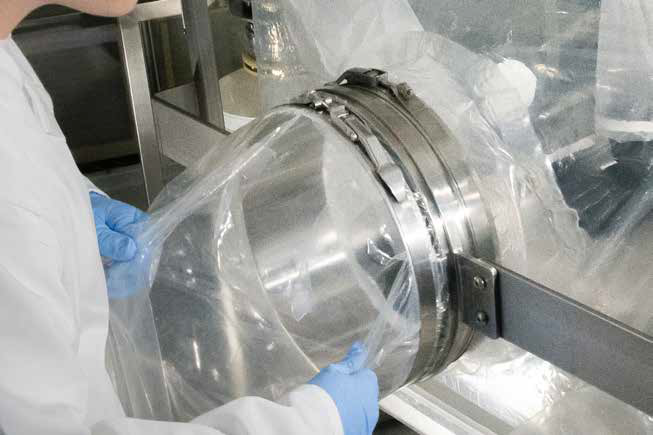

  • The hardware is docked to the containment enclosure either by using the existing alpha/beta port hardware or bolting directly to the wall of the rigid isolator. The liner is then extended over the item to be introduced or removed from the enclosure and then crimped off to complete the contained transfer.
  • Applications Current and Potential Current applications: tool pass through on 22 rigid isolators at one international Pharma manufacturers site, trash bag out, sample bottle transfer, tablet transfer for testing/analysis, pre-packaged seed/API processing after tare weight process Other potential applications: document transfer, gamma irradiated for sterile transfer operation, wall mounted in process suite for contained pass thrus. Containment Level Nanogram containment levels demonstrated during task based operations see data below.
FEATURES:
  • Validated system
  • Proven and tested softgoods
  • Disposable
  • Bolt on or Rapid Transfer Poly Interfaces available BENEFITS
  • Minimizes risk during operation
  • ArmorFlex films are regulatory compliant
  • Eliminates concern of cross contamination due to pneumatic effect of low end films leaking
  • Reduced cleaning and cleaning validation costs
  • Reduced process time and cost by eliminatingmultiple RTP canisters
  • Eliminates RTP seal maintenance
Read Less

CATEGORIES: Powder Containment Solutions

Catalog Number Product Name Action
TBD Bag In/Bag Out (BIBO) system is a family of contained transfer designs for multiple processes
