Conductivity Monitor and Transmitter

Description

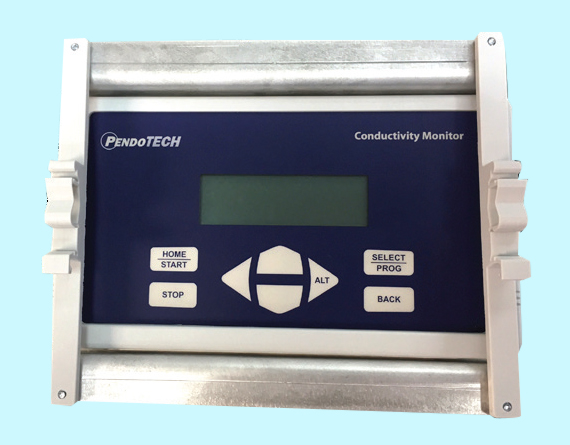

Conductivity Monitor Features Include (Model: CMONT)

• Reads conductivity and temperature from sensor

• Reads two sensors; including ability to read temperature only

• User is prompted to enter cell constant when new sensor is connected

• Performs temperature normalization to 25°C

– User adjustable mS/°C factor

– Default factor of 2.1% per °C

• Analog 4-20mA outputs for both conductivity and temperature to enable integration to a control system

• RS-232 output for data collection to a PC

• Panel mount kit, DIN rail kit, and benchtop stand available

Conductivity Monitor Includes:

• Conductivity Monitor Unit

• Cables for connection of conductivity sensors – 10ft / 3.0meters

• Power Supply with country specific plug blades

• Connector for field wiring

PendoTECH Conductivity Sensor Transmitter

The PendoTECH Conductivity Sensor Transmitter model CT-2 connects to the PendoTECH Single Use Conductivity SensorTM and produces a 4-20milliamp signal that is linear with conductivity. It reads the raw conductivity and the temperature value from the sensor and calculates the normalized value at 25°C. The normalized conductivity value is transmitted via the 4-20mA signal in the rangex` of 0-150mS. It has a convenient DIN rail mounting design.
